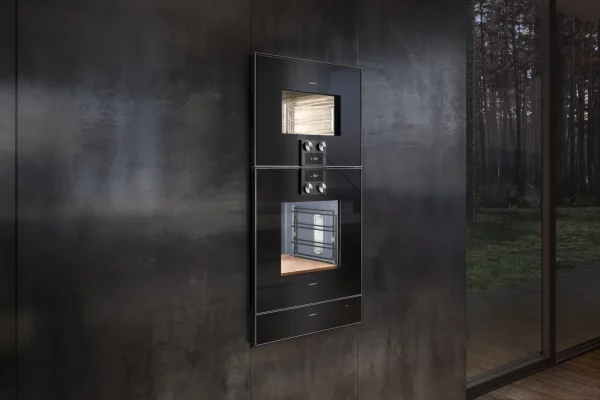

Gaggenau BO420102 400 Series Anthracite 60cm

Description

Further details

• Handleless door / automatic door opening / door opening via voice assistant possible
• Pyrolysis
• 9 heating methods, with baking stone function
• TFT touch display
• Bezel-less appliance with attached control module
• Electronic temperature control from 50 °c to 300 °c
• 76 liters usable volume

Heating methods

• Hot air.
• Eco hot air.
• Top heat + bottom heat.
• Top heat.
• Bottom heat.
• Hot air + lower heat.
• Surface grill + convection.
• Surface grill.
• Baking stone function.

Operation

• automatic door opening.
• Operation by rotary knob and TFT touch display.
• Plain text display.
• Possibility to save individual recipes.
• Info button with operating instructions.
• Side-opening door with 180° opening angle.

equipment

• Brick socket.
• Actual temperature display.
• Quick heat-up.
• Timer functions: Cooking time duration, cooking time end, short time alarm, stopwatch, long time timer (Star-K certified).
• 60 W halogen lighting on top.
• Enameled side grates with 4 rack levels, pyrolysis resistant.
• Home network integration for digital services (Home Connect) wired via lan (recommended) or wireless via WiFi.
• The use of the Home Connect function depends on the Home Connect services, which are not available in every country. For more information, visit home-connect.com.

Security

• Thermally insulated door with quadruple glazing.
• Child safety lock.
• Safety shutdown.
• Housing cooling with temperature protection.

Cleaning

• Pyrolysis.
• Gaggenau enamel.
• Heated catalyst for cleaning the oven air.

Planning information

• Door hinge not changeable.
• distance between furniture body and door front surface 47 mm.
• distance between furniture carcass and outer edge of door handle 94 mm with retrofitted handle (optional accessory).
• Note front projection, including door handle if necessary, for opening side drawers.
• When planning a corner solution, consider a door opening angle of at least 90°.
• For an installation depth of 550 mm, route the connection cable downwards on the right in the area of the beveled housing corner.
• plan the junction box outside the installation niche.
• lan connection is located at the top right in the rear view.

connection data

• Energy efficiency class a on a scale of efficiency classes from a+++ to D.
• Total connected load 3.7 kW.
• connection cable with plug is not included, therefore order separately.
• Power standby/display on 0.7 W.
• Power standby/display off 0.5 W.
• Power standby/network 1.4 W.
• Time auto standby/display on 20 min.
• Time auto standby/display off 20 min.
• Time auto standby/network 20 min.
• lan cable not included.
