Gaggenau RF471305 Vario Freezer, 400 Series

Description

Highlights

• Stainless steel interior with solid anthracite aluminium elements
• Warm white and glare-free LED light spots
• Opening assist for door with two options:
• 1. Push-to-open function for integration into handleless furniture front 2. Pull-to-open function to facilitate opening the door using a handle
• The drawers in the fridge and freezer models are positioned at the same height.

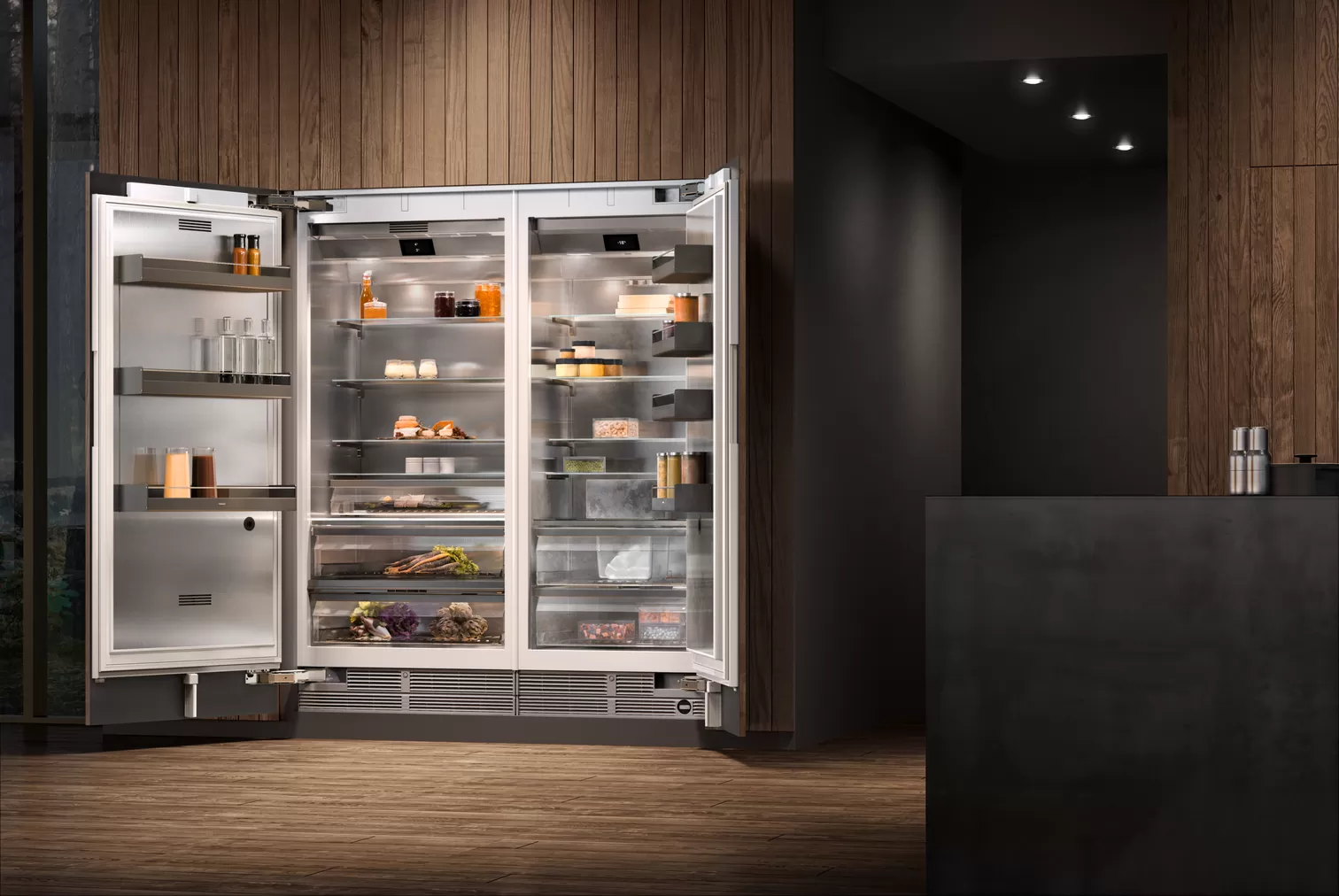

• With side-by-side installation, the glass shelves and door racks can be aligned on the same level

Program

• TFT touch display operation
• Clear text display

Equipment

• Dynamic cold air distribution
• Automatic defrosting with defrost water evaporation
• Cushioned door closing system
• Rest mode certified by Star-K
• When rest mode is active, the appliance can only be opened using a handle
• Open-door and malfunction alarm

Freezing

• No-frost technology with fast freezing at -30 °C
• Temperature adjustable from -14 °C to -24 °C
• 4-star freezer compartment
• Freezing capacity 23 kg /24 h
• Storage time after a malfunction 10 h
• 4 safety glass shelves, 3 of which are individually height adjustable
• 2 fully extendable drawers with transparent front
• Brilliant LED light spots with warm white, glare-free light (3500 K)
• Smooth design door rail system with fully flexible positioning of door racks

Ice Maker

• Integrated in the freezer compartment, with fixed inlet water connection
• Particle filter for water inlet, integrated in ventilation grille area
• Saturation indicator shown in TFT touch display
• Can be switched off
• Ice cube production approx. 1.7 kg/24 h
• Removable ice storage container with approx. 4 kg capacity

Planning Notes

• Flat hinge
• Door opening angle of 115°, fixable at 90°
• Door hinge left, reversible
• In case of door opening angle of 90°, the drawers have restricted access and the standard ice storage container cannot be removed. A small ice storage container (RA 448 220) is available to ensure access. This change must be done prior to fixing the door

Connection Data

• Total connected load 0.300 KW
• Connecting cable 3.0 m, pluggable
• Water inlet
• Supply hose 2.0 m with 3/4 ” connection
• Water pressure 2 to 8 bar
